Specification

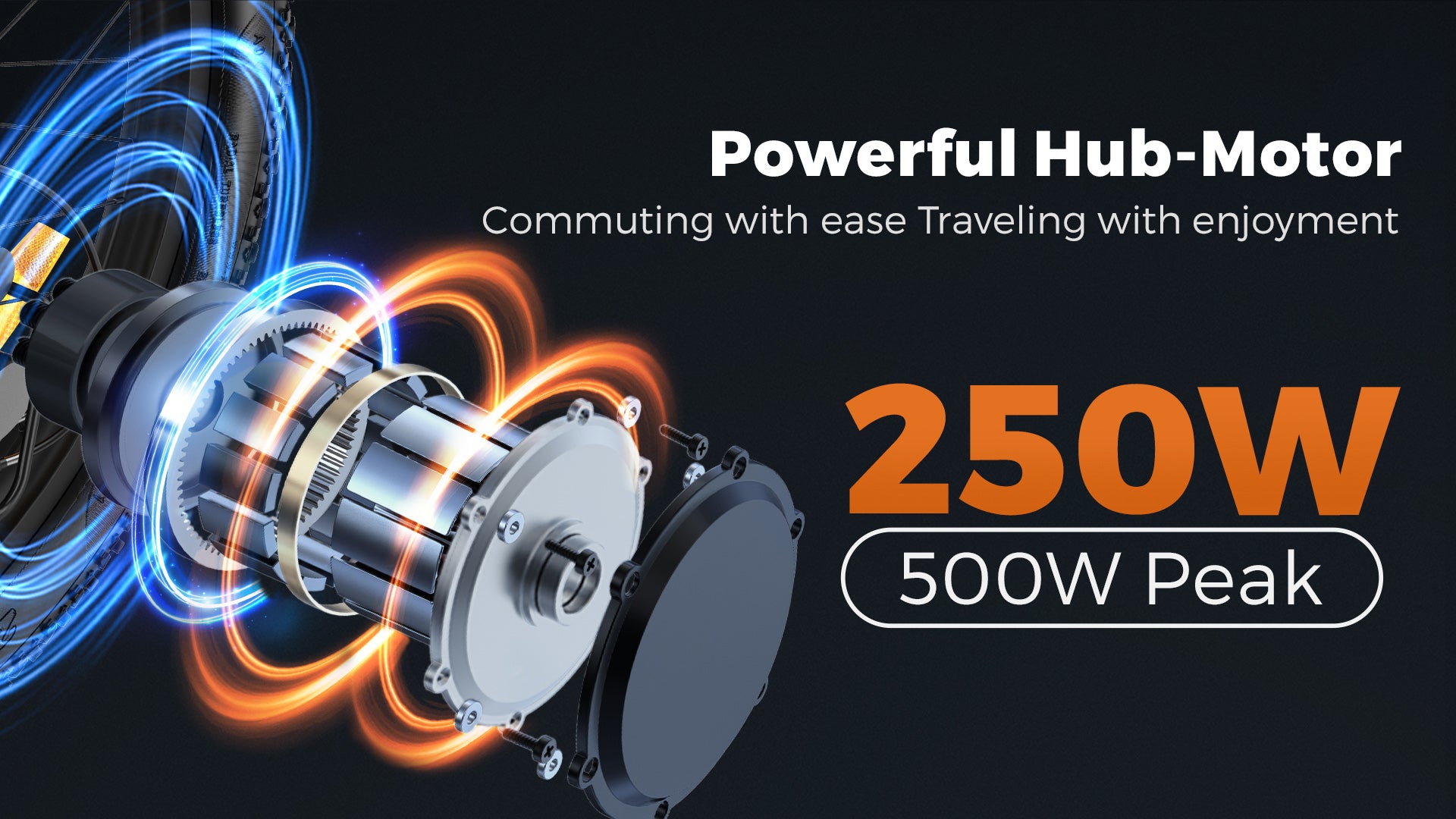

| Motor | 250W Motor |
| Torque | 30 N.m |
| Tires | 14*2.125 Tires |
| Battery | 48V10AH Lithium-Ion Battery |
| Range | 25 km (Electric Mode) |
| 42 km (PAS Mode) | |
| Max Speed | 20-25 km/h |
| Charging Time | About 6-8H |
| Maximum Climbing Degree | 7° |
| Brake | Mechanical Disc Brakes |
| Bike Weight | 22.7 kg (49.9 lbs) |
| Gross Weight | 31.7 kg (67.9 lbs) |
Size
Unfolded
| Rider Height | 4.5 (ft) -5.5 (ft) |
| Payload Capacity | 100 kg (220.4 lbs) |
| Package Dimensions (LWH) | 126*22*64 kg |
| A--Wheelbase | 88.3 cm |
| B--Total Length | 124 cm |
| C--Reach | 22.5 cm |
| D--Standover Height | 58 cm |
| E--Minimum Saddle Height | 70 cm |
| F--Maximum Saddle Height | *87 cm |
| G--Minimum Handlebar Height | 88 cm |
| H--Maximum Handlebar Height | 98 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded
| Folded Size | 79*47*73 cm |
| A--Height | 73 cm |
| B--Length | 79 cm |
| C--Width | 47 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the Box?
| T14 E-bike | *1 |
| 48V10Ah Removable Internal Lithium-ion | *1 |
| Battery Charger | *1 |
| Assembly Tools | *1 |
| Pedals | *2 |
| User Manual | *1 |
Please note: The product you receive is based on the option you selected to order.
Warranty
|
Frame |
3 year |
|---|---|
|
Parts |
1 year |
|
Battery/Controller/Motor |
1 year |
|
Terms & Conditions |
This warranty only applies to the original owner of a e-bike and is limited to the replacement of defective parts. |
